Setting up a plate carrier correctly is fundamental for safety, mobility, and mission effectiveness. A poorly configured carrier, however, can be a liability, causing fatigue, hindering movement, and even compromising the protection the plates are designed to provide.

As a tactical gear manufacturer with over 15 years of experience, we’ve designed and tested countless plate carrier configurations. This guide provides a foundational, step-by-step process to correctly fit, configure, and customize your plate carrier for optimal performance.

What You Need for a Proper Plate Carrier Setup

The core elements of any plate carrier setup include:

The Plate Carrier itself: The vest designed to hold hard armor plates.
Hard Armor Plates: Rifle-rated (NIJ Level III/IV) or trauma plates. Ensure they are the correct size (e.g., 10″ x 12″) for your carrier’s plate bags.
Soft Armor Panels (if applicable): Some carriers are designed to hold soft armor backers behind hard plates for increased protection.
MOLLE-Compatible Pouches: Such as magazine pouches, an Integrated First Aid Kit (IFAK), utility pouches, and hydration carriers.
Placard System (Optional): A swift-clip compatible front panel that allows for rapid configuration changes.

How to Set Up a Plate Carrier: A Step-by-Step Guide

Step 1: Insert and Orient the Armor Plates

Your first and most important step is to install the armor. Protection is the primary function of the carrier.

Locate the plate bags on the front and back of the carrier. You will find an opening, often secured with Velcro or a zipper.
Important: Insert the plates with the strike face oriented correctly. Most multi-curve plates are designed to curve toward your body, with the top of the plate being narrower than the bottom. Consult your plate’s manufacturer guide to be certain.
Secure the opening. The plates should sit snugly within the bag without excessive shifting. A proper fit means the top of the front plate is about an inch below your clavicle notch.

Step 2: Adjust the Carrier for Fit and Comfort

Before adding any weight, you need to ensure the carrier itself fits your body. A well-fitting carrier distributes weight efficiently and prevents chafing.

Shoulder Straps: Adjust them so the top of the front plate bag sits comfortably just below your collarbone. The straps should be tight enough to prevent excessive movement but not so tight that they restrict your shoulders or breathing.

Cummerbund: Secure the side cummerbund. It should be snug around your torso, providing stability without constricting your ribcage. The carrier should feel like a secure, integrated part of your upper body, not a loose jacket.

Step 3: Plan Your Plate Carrier Pouch Layout

This is the most strategic part of the process. Think critically about what you need and where it should be located for efficient access. The general rule is to prioritize essential, life-saving equipment and place it where you can reach it with both hands.

Front and Center: This is your prime real estate. Place items you need to access quickly and frequently. For most users, this means rifle and pistol magazines.

Dominant Side (Usually Right): This area is ideal for your sidearm (if holstered on the carrier) and less frequently used items like a utility pouch or chem lights.

Non-Dominant Side (Usually Left): This is the standard location for your IFAK. You must be able to reach it with both your dominant and non-dominant hand in case one arm is injured.

Back: Reserve this area for larger, less critical items you may need help accessing, such as a hydration bladder or a general-purpose pouch for sustainment items. Avoid placing anything sharp or hard that could injure you if you roll onto your back.

Step 4: Attach Your Pouches via MOLLE Webbing

With your plan in place, begin attaching pouches via the MOLLE/PALS webbing. Follow a logical sequence.

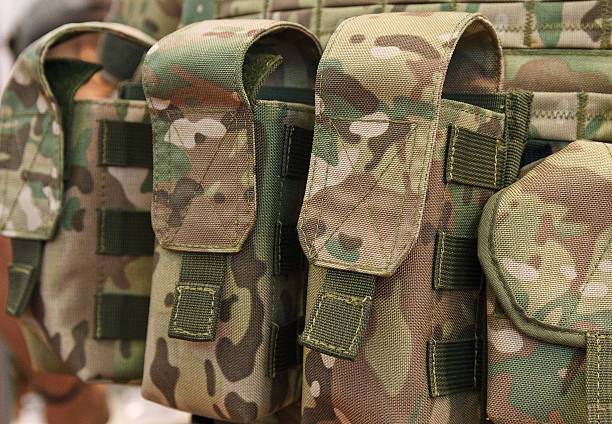

Magazine Pouches: Start with your primary rifle magazines on the front of the carrier for dominant-hand access. Consider retention: bungee cords or pull-tabs offer security while allowing rapid access. Place pistol magazines in a secondary, but still accessible, location.

Medical Kit (IFAK): Your IFAK is non-negotiable. It must be accessible by either hand, as you may be injured. The lower side of the cummerbund is a standard, effective location. Ensure it is clearly marked, for instance with a red cross.

Utilities and Communications: Attach a radio pouch on your dominant side, ensuring you can access the controls. Utility pouches for multi-tools, batteries, or other essentials should be placed where they don’t interfere with more critical gear.

Sustainment Gear: Heavier, less frequently accessed items like a hydration bladder or a general-purpose pouch are best placed on the back to maintain balance and keep the front profile clean.

Step 5: Final Adjustments and Testing

Once all your pouches are attached, it’s time for a final fit check and functional test.

Put the fully loaded carrier back on and re-tighten all straps. The weight of the magazines and gear will change how the carrier sits.
Move around. Bend at the waist, kneel, go prone, and simulate shouldering a weapon. Your movements should not be restricted.
Practice accessing your gear. Can you smoothly draw a magazine? Can you reach your IFAK with either hand? Identify any pouches that are obstructed or difficult to reach.
Ensure nothing is interfering with the draw of your primary sidearm if you are wearing one on your belt.

Common Plate Carrier Setup Mistakes to Avoid

Overloading: The most common error. It leads to rapid fatigue and reduces tactical mobility.
Poor Weight Distribution: Placing all heavy gear on one side forces you to compensate physically, leading to muscle strain.
Ignoring the Mission Profile: A setup for a sustained patrol will differ from a CQB or home defense setup. Configure your gear for the specific task at hand.
Inadequate Maintenance: Failing to regularly inspect your carrier, plates, and pouches for signs of wear can lead to failure when you need it most.

Expert Tips for Maintaining Your Setup

Practice Regularly: Familiarity with your setup is as important as the setup itself. Conduct drills to build muscle memory. Fine-tune the fit based on what you learn during movement.

Balance Security and Speed: Ensure your gear is securely retained to prevent loss and noise, but not so secure that you cannot access it quickly under stress.

Seek Professional Training: There is no substitute for hands-on instruction from qualified professionals who can provide personalized feedback on your setup and techniques.

Conclusion: The Principle of a Balanced Plate Carrier Setup

There is no single “perfect” setup. The optimal configuration is one that aligns with your mission requirements, physical build, and personal preferences while adhering to the core principles of balance, accessibility, and necessity. A simple, efficient, and well-practiced setup will always outperform a complex, overloaded one.

As a direct manufacturer, we design our plate carriers and MOLLE pouches for durability and modularity, giving you the reliable foundation you need to build a setup that works.
